TV Transmitter Band I and III

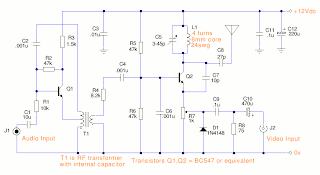

This TV transmitter working on VHF Band I and III, using negative sound modulation and PAL video modulation. This is suitable for countries using TV systems B and G, like Australia and Indonesia.
This circuit has not been tested at UHF frequencies. The modulated sound signal contains 5.5 -6MHz by tuning C5. Sound modulation is FM and is compatible with UK TV Transmitter System I sound. The transmitter however is working at VHF frequencies between 54 and 216MHz (band I and Band III) and therefore compatible only with countries using Pal System B and Pal System G.
