3 Watt FM Transmitter

3 Watt FM Transmitter

This is the schematic for an FM transmitter with 3 to 3.5 W output power that can be used between 90 and 110 MHz. Although the stability isn't so bad, a PLL can be used on this circuit.

Schematic

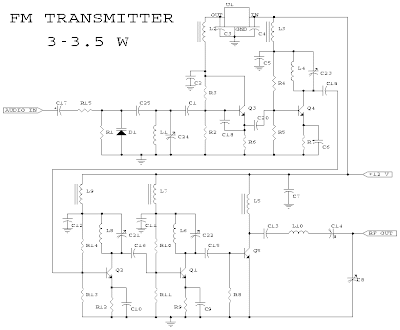

This is the schematic of the 3W FM Transmitter

Parts

Part Total Qty. Description Substitutions
R1,R4,R14,R15 4 10K 1/4W Resistor
R2,R3 2 22K 1/4W Resistor
R5,R13 2 3.9K 1/4W Resistor
R6,R11 2 680 Ohm 1/4W Resistor
R7 1 150 Ohm 1/4W Resistor
R8,R12 2 100 Ohm 1/4W Resistor
R9 1 68 Ohm 1/4W Resistor
R10 1 6.8K 1/4W Resistor
C1 1 4.7pF Ceramic Disc Capacitor
C2,C3,C4,C5,C7,
C11,C12 7 100nF Ceramic Disc Capacitor
C6,C9,C10 3 10nF Ceramic Disc Capacitor
C8,C14 2 60pF Trimmer Capacitor
C13 1 82pF Ceramic Disc Capacitor
C15 1 27pF Ceramic Disc Capacitor
C16 1 22pF Ceramic Disc Capacitor
C17 1 10uF 25V Electrolytic Capacitor
C18 1 33pF Ceramic Disc Capacitor
C19 1 18pF Ceramic Disc Capacitor
C20 1 12pF Ceramic Disc Capacitor
C21,C22,C23,C24 4 40pF Trimmer Capacitor
C25 1 5pF Ceramic Disc Capacitor
L1 1 5 WDG, Dia 6 mm, 1 mm CuAg, Space 1 mm
L2,L3,L5,L7,L9 5 6-hole Ferroxcube Wide band HF Choke (5 WDG)
L4,L6,L8 3 1.5 WDG, Dia 6 mm, 1 mm CuAg, Space 1 mm
L10 1 8 WDG, Dia 5 mm, 1 mm CuAg, Space 1 mm
D1 1 BB405 BB102 or equal (most varicaps with C = 2-20
pF [approx.] will do)
Q1 1 2N3866
Q2,Q4 2 2N2219A
Q3 1 BF115
Q5 1 2N3553
U1 1 7810 Regulator
MIC 1 Electret Microphone
MISC 1 PC Board, Wire For Antenna, Heatsinks

Notes

1. The circuit has been tested on a normal RF-testing breadboard (with one side copper). Make some connections between the two sides. Build the transmitter in a RF-proof casing, use good connectors and cable, make a shielding between the different stages, and be aware of all the other RF rules of building.

2. Q1 and Q5 should be cooled with a heat sink. The case-pin of Q4 should be grounded.

3. C24 is for the frequency adjustment. The other trimmers must be adjusted to maximum output power with minimum SWR and input current.

4. Local laws in some states, provinces or countries may prohibit the operation of this transmitter. Check with the local authorities.
